Eco-Friendly

HR-Series

Product Type:

Sealed Rocker Switches

Description:

This series is not recommended for new designs.
We will only continue to service existing customers.

The HR-Series is a perimeter illuminated sealed rocker switch, featuring a stylish, low profile actuator that is available in either two or three positions. These two or three position rocker switches have a variety of dependent and independent illumination options; momentary and maintained circuits; and up to two customizable laser etched legends.

The patented design supports the various illumination options and allows the switch to be rated up to 20 amps, eliminating the need for relays. HR-Series rocker switches are sealed to IP68 for above-panel components and endure a minimum of 200,000 cycles. Additionally, these low profile rocker switches fit the industry standard cutout.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »

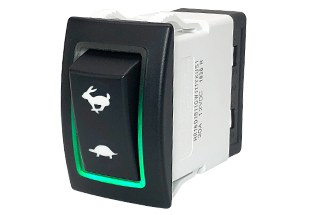

  • HR-Series Low Profile, Sealed, Rocker Switch with Bottom Half Illumination in Green and Laser-Etched Legends.

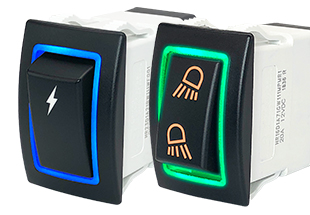

  • HR-Series Low Profile, Sealed Rocker Switches with Blue and Green Perimeter Illumination, as well as Laser-Etched Legends.

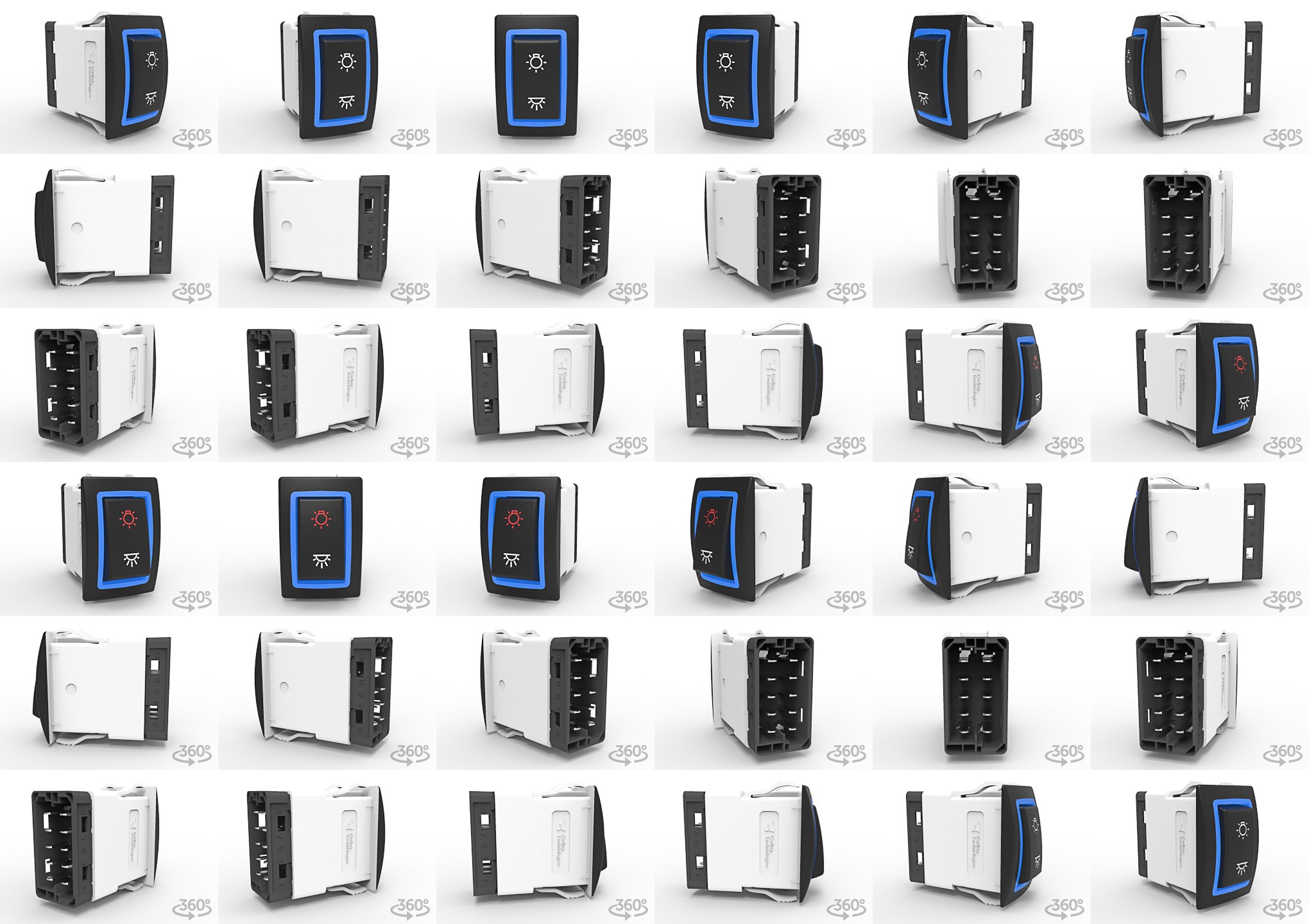

HR-Series Low Profile, Sealed Rocker Switch with Perimeter Illumination in Blue, Laser-Etched Legends and .110 Tab Terminals
HR-Series Low Profile, Sealed, Rocker Switch with Bottom Half Illumination in Green and Laser-Etched Legends.
HR-Series Low Profile, Sealed Rocker Switches with Blue and Green Perimeter Illumination, as well as Laser-Etched Legends.
Watch Product Video

Specs

Number of Poles

1-2 Poles

Ratings

20A 12V

Circuits

On-Off
(On)-Off
On-On
On-(On)
On-Off-On
(On)-Off-(On)

Dielectric Strength

Across open contacts: 500 V RMS AC for 1 minute
From pole to pole (on multi pole variants) 500 V RMS AC for 1 min.

Insulation Resistance

50 Megaohms

Base Material

Nylon, V-0 UL flammability rating

Actuator Style

Stylish, low profile actuator with illuminated perimeter "halo"

Illumination Options

Full Perimeter or Half Parimeter Illumination
Variety of Independent and Dependent Circuits
Variety of Illumination color choices

Actuator Material

Polycarbonate, V-2 UL flammability rating, painted and laser marked

Bracket/Bezel Material

Polycarbonate polyester blend, V-0 UL flammability rating

Terminal Options

.110 Tab (QC)

Mounting Method

Snap-in

Mounting Hole Dimensions

.83" x 1.45" ; 21.08mm x 36.83mm

Resources

Switches - Rocker

Applications

Marine
On/Off-Highway
Lawn Equipment
Golf Carts
Outdoor Construction Sinage
Various Weatherproof Applications
