A21-B0-34-630-5B1-I

Category: Home

Submit Request	Estimated Annual Quantity
	Application	I want a quote. I want a sample.

Line Drawing - Click to Enlarge

Current Rating	30 amp
Poles	1
Trip Time Delay	DC, 50/60Hz Medium
Circuit	Series Trip (Current)
Mounting	6-32 x 0.195" Standard Rocker Bezel Threaded Insert
Termination	Screw 10-32 Bus Type

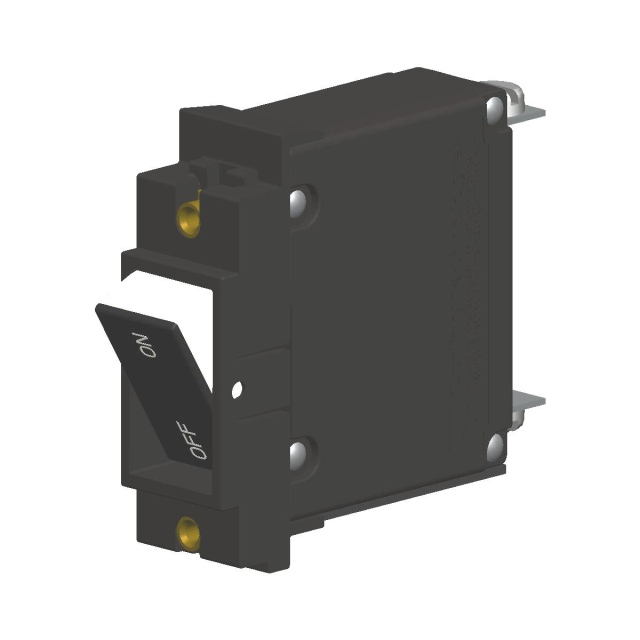

Actuator Type	Two Color Flat Visi-Rocker
Illumination	Non-Illuminated
Agency Approvals	UL 1077 Recognized\|CSA Accepted\|UL 1500 Recognized
Group	Circuit Protection
Series	A-Series
Product Type	A-Series Circuit Breaker
3D CAD	Yes
