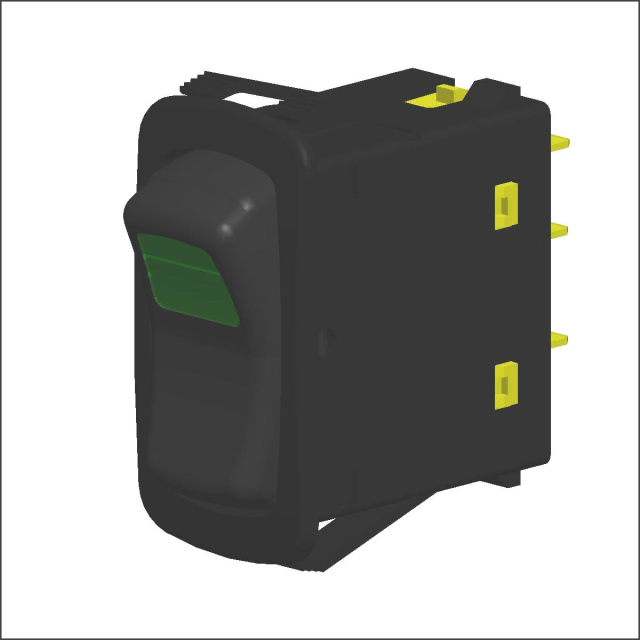

Black Rocker Switch with Green Lens/No Lens and .250 Tab (Q.C.) terminals

L11D1AH01-AGZ00-000

Category: L-Series

Submit Request Estimated Annual Quantity
  Application I want a quote.
I want a sample.

Line Drawing - Click to Enlarge

Product Details

Poles 1
Rating 20A
Voltage 12VDC
Circuit Function ON-None-OFF
Switch Type Sealed Rocker Switch
Actuator Type Rocker
Mounting Snap-In
Termination .250 Tab (Q.C.)
Illumination Illuminated
Group Switch
Series L-Series
Product Type Rocker Switch
3D CAD Yes
IP Rating IP67
Documentation
Datasheet L-Series_Details_%26_COS_111213.pdf
Product Video 1ipN1_Q8YJU
Product Page Link rocker-switches-l-series
