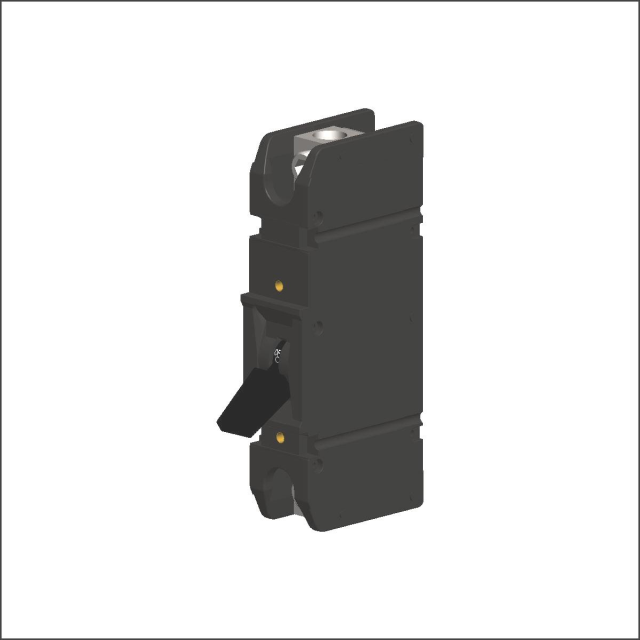

FA1-B0-14-917-32A-BG

Category: F-Series

Submit Request	Estimated Annual Quantity
	Application	I want a quote. I want a sample.

Line Drawing - Click to Enlarge

Current Rating	175 amp
Voltage	125VDC
Poles	1
Trip Time Delay	DC Medium
Interrupting Capacity	50,000 amps
Circuit	Series Trip (Current)
Mounting	10-32 Front Mounting Insert with Screw 10-32 clearance holes Back Mounting Insert
Termination	Box Wire Connector, Front Connected
Actuator Type	Handle
Illumination	Non-Illuminated
Agency Approvals	UL 489 Listed\|cULus
Group	Circuit Protection
Series	F-Series
Product Type	F-Series Circuit Breaker
3D CAD	Yes
