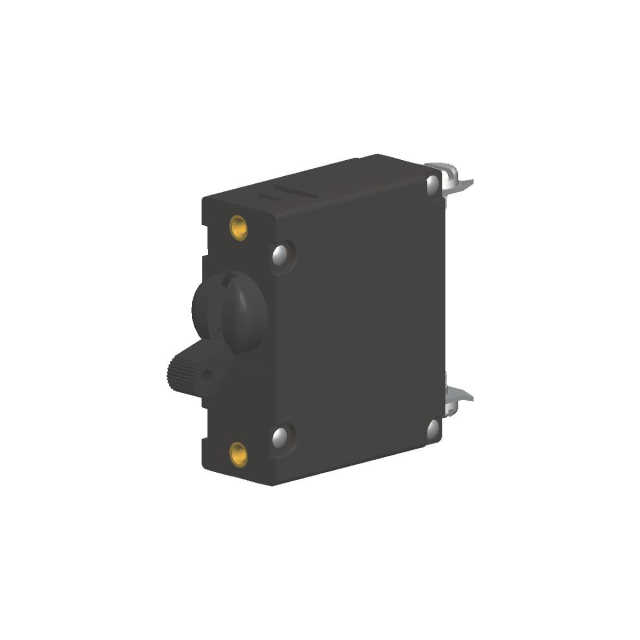

BA1-B0-11-610-221-D

Category: B-Series

Submit Request	Estimated Annual Quantity
	Application	I want a quote. I want a sample.

Line Drawing - Click to Enlarge

Current Rating	10 amp
Poles	1
Trip Time Delay	DC Ultra Short
Circuit	Series Trip (Current)
Mounting	6-32 x 0.195" Threaded Insert
Termination	Screw 8-32 with upturned lugs
Actuator Type	Handle
Illumination	Non-Illuminated
Agency Approvals	UL 1077 Recognized\|CSA Accepted\|VDE Certified to IEC/EN 60934
Group	Circuit Protection
Series	B-Series
Product Type	B-Series Circuit Breaker
3D CAD	Yes
