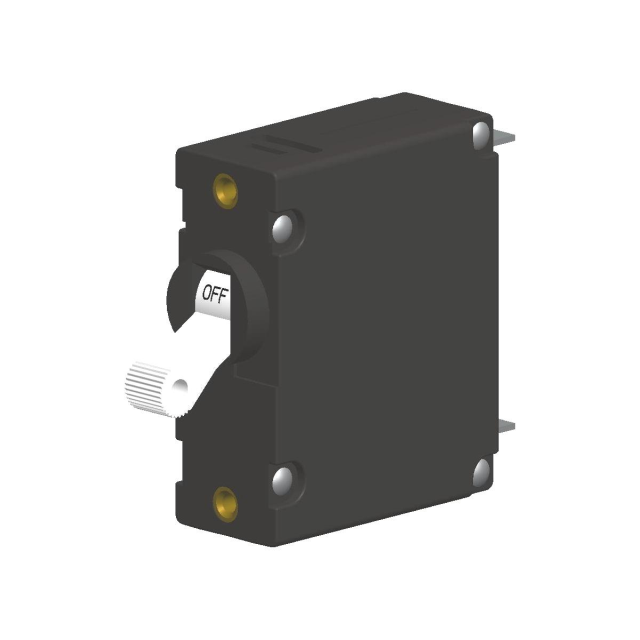

Handle, Single-pole, Push-On 0.250 Tab (Q.C.) terminals

AA1-B0-10-620-1B2-C

Category: A-Series

Submit Request Estimated Annual Quantity
  Application I want a quote.
I want a sample.

Line Drawing - Click to Enlarge

Product Details

Current Rating 20 amp
Poles 1
Trip Time Delay DC Instantaneous
Circuit Series Trip (Current)
Mounting ISO M3 x 5mm Threaded Insert
Termination Push-On 0.250 Tab (Q.C.)
Actuator Type Handle
Illumination Non-Illuminated
Agency Approvals UL 1077 Recognized|CSA Accepted
Group Circuit Protection
Series A-Series
Product Type A-Series Circuit Breaker
3D CAD Yes
Documentation
Datasheet A-Series_Details_%26_COS_030314.pdf
Product Page Link hm-cb-a-series
