Multi-Function Displays

Product Type:

OctoPlex G2-Series

Description:

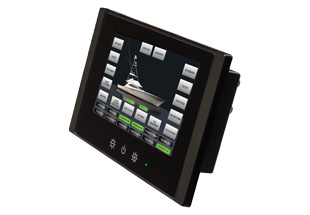

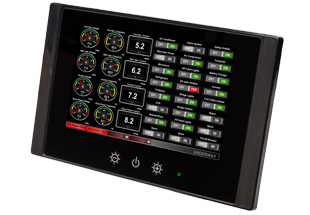

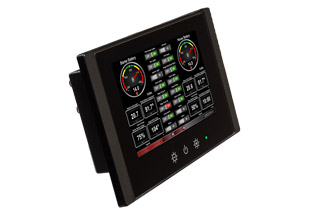

The A3419 and A3422 are 8” and 12.1” dedicated touchscreens that includes Carling’s N2KView® vessel monitoring and control software. The N2KView software allows you to configure as many favorite screens as you want with exactly the information you want to see. They provide an extremely simple touch interface for monitoring and controlling critical systems from anywhere on the vessel.

The A3419 and A3422 are ruggedized for marine use and includes a solid state disk drive to withstand the pounding associated with waves. And since the A3419 and A3422 only dissipates 10 watts, there is no need for internal cooling fans that are noisy and wear out causing electronics to overheat and fail. The A3419 and A3422 can be mounted outside given the high bright screen and waterproof front.

View Similar Products »

Specs

Operating Voltage

10-32 Volts DC

Load Equivalence Number

1
NMEA 2000® Spec. (1 LEN = 50 mA)

Dimensions

8”: 2.87” x 10.4” x 6.5” [73 x 265 x 164mm]
12.1”: 2.98” x 13.97” x 8.94” [75 x 354 x 227mm]

IP Rating

IP66 Front, IP22 Rear (EN60529)

Operating Temperature

-20°C to 55°C (Humidity up to 95%)

Weight

8”: 4.2 lbs (1.9 kg)
12.1”: 6.0 lbs [2.7 kg]

Display Resolution

8": 800x480
12.2": 1280x800

USB Ports

One USB 2.0, One USB 3.0
