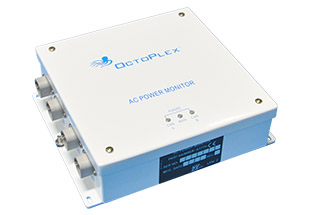

About this product
The AC Monitor measures the voltage, current and frequency of up to four (4) Single phase single Line AC inputs, two (2) Single Phase Dual Line AC inputs, or one (1) Three phase Three Line AC input. The AC Monitor utilizes dual CAN connections for redundancy.
AC Voltage Input | 90VAC – 264VAC |
Operating Frequency | 50/60 Hz |
CAN Bus Voltage | +15 VDC (± 0.5) |
Load Equivalence Number | 1 |
Dimensions | 7.52” X 8.51” X 2.67” |
CAN Bus Connectors | Two (2) Micro-C Male |
Operating Temperature | -40°C to +70°C |
Weight | 3.6 lbs (1.64 kg) nominal |
NMEA 2000 | Category B |
CE | IEC 60533 Electrical and Electronic Installations in Ships |
