S-Series

Product Type:

Full-Sized Rocker Switches

Description:

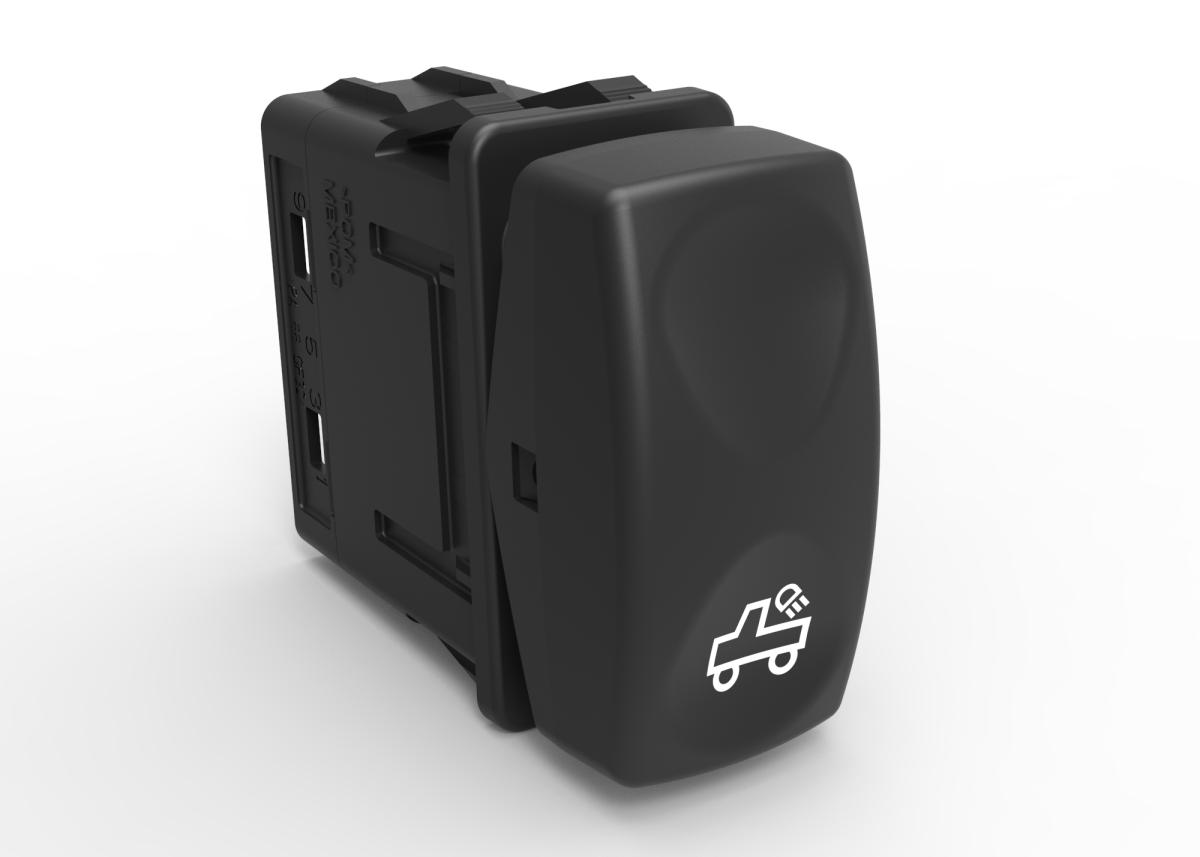

S-Series rocker switches are ideally suited for enclosed cab applications with special focus afforded to the vehicle operator. With features including abbreviated travel half throw actuators, ergonomic rockers, illumination in up to three detent switch positions, and a non-teasable snap action circuit, these switches provide the driver with easily recognizable and simple to operate controls. Additionally, its space saving compact envelope, clean bezel-less design, integrated low insertion force connector and polarized switch base collaborate for quick installation. Most any illumination and switch circuitry is easily accommodated with the S-Series 10 terminal base. These great features, combined with over 1,000 available laser etched or pad-printed legends, allow the S-Series to be seamlessly incorporated into just about any cab interior environment.

1-2 pole; 10A, 24VDC max rating;

View Similar Products »

Specs

Certifications

No Agency Listings

Number of Poles

1-2 poles

Ratings

.4VA 28VDC Resistive

10.5mA 1.5A 28VDC
5A 28V 50A Inrush Lamp Load
3.5A 28VDC, 18A Inrush
10mA 10A 28VDC

Circuits

On-Off-On
(On)-Off-(On)

Variety of Special Circuits available

Dielectric Strength

1500V RMS from pole to pole

Insulation Resistance

50 megohms (minimum)

Base Material

Nylon 6/6 glass filled

Actuator Style

Rectangular rocker with dual indents

Actuator Material

Polycarbonate

Bracket/Bezel MaterialAcetal
Terminal Options

.250 QC Tabs, .187 QC Tabs

Mounting Method

Snap-In

Mounting Hole Dimensions

.1.529” x .787” polarized

Value Added

Custom colors and legends available
Special circuits
Hazard warning circuits
Modular or single piece mounting brackets
Optional lock-on terminal connector
Hole plug
Actuator removal tool
and more
