Eco-Friendly

P27-Series

Product Type:

Momentary Pushbutton Switch

Description:

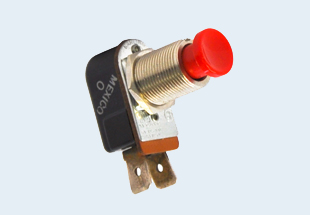

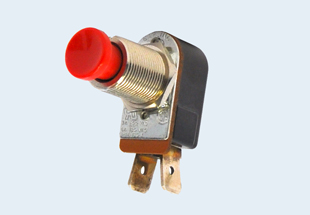

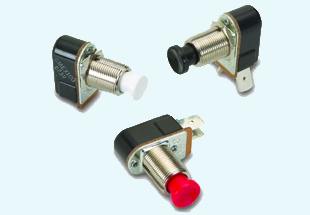

The P27-Series is a single pole switch featuring a concave nylon actuator. It is AC rated up to 6A 125VAC, 3A 250VAC. These single throw momentary action switches have a slow-make, slow-break contact mechanism and requires a medium actuation force (26 oz. typical). Suitable for general purpose applications.

View Similar Products »

Specs

Certifications

UL CSA

Number of Poles

1 pole

Ratings

3A 250VAC
6A 125VAC
3/4A 125V

Circuits

Off-(On)
(On)-Off

Dielectric Strength

1,000 V RMS (minimum)

Insulation Resistance

100 megohms (minimum)

Base Material

Phenolic

Actuator Style

Nylon Concave Pushbutton

Actuator Material

Nylon

Bushing Material

Brass/Nickel Plate

Terminal Options

Solder Lugs
Wire Leads

Mounting Method

Bushing Mount

Mounting Hole Dimensions

.500" diameter; 12.70mm diameter

Value Added

Bushing accessories available
Custom lead lengths available
Custom strip lengths available
and more

Resources

Switches - Push Button

Applications

Intercoms
Security System
Electronic Signs
Marine
