2S-Series

Product Type:

Sub-Miniature Toggle Switches

Description:

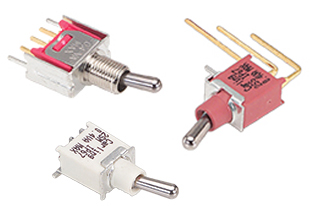

The 2S family of sub-miniature toggle switches is comprised of three switch series: the 2S1-Series toggle switch, the 2SS-Series sealed toggle switch, and the 2SM-Series surface mount sealed sub-miniature toggle switch. All of these series offer a variety of ratings, circuits, contact materials, terminal platings,and actuator types.

Download Datasheet Request a Quote or Sample Configure a PartBrowse Standard Parts
View Similar Products »
  • Carling Technologies 2M-Series Subminiature Toggle Switches
Carling Technologies 2M-Series Subminiature Toggle Switches

Specs

Certifications

2S1-Series: UL & CSA Approved
2SS-Series & 2SM-Series: IP67

Number of Poles

2S1-Series & 2SS-Series: 1-2 poles
2SM-Series: 1 pole

Ratings

3A @ 125 VAC or 28VDC
1.5A @ 250VAC

0.4VA max @ 20V max (AC/DC)

Circuits

On-On
On-(On)
On-Off-On
(On)-Off-(On)
On-Off-(On)

Dielectric Strength

1500 Volts RMS @ sea level

Insulation Resistance

1000 megohms (minimum)

Actuator Style

Round toggle (various lengths)
ESD resistant plastic toggle

Case Material

all UL94 V-0
2S1-Series: Dially phthalate (DAP)
2SS-Series: Glass filled nylon 6/6,
flame retardant, heat stabilized
2SM-Series: Glass filled nylon 4/6,
flame retardant, heat stabilized

Toggle Material

2S1-Series: Brass, chrome plated
2SS & 2SM-Series: Brass, chrome plated
or nylon, internal o-ring sealed

Bushing Material

2S1-Series: Brass, nickel plated
2SS-Series: Glass filled nylon 6/6,
flame retardant, heat stabilized (UL
94V-0)
2SM-Series: Glass filled nylon 4/6,
flame retardant, heat stabilized (UL
94V-0)

Housing Material

Stainless Steel

Switch Support

Brass, tin plated

Terminal Options

Solder Lug
PCB
PC Mount
Snap-in, U bracket

Mounting Hole Dimensions

See PDF datasheet file above for dimensions
and more

Resources

Applications

Telecommunications
Instrumentation
Networking
Medical Equipment

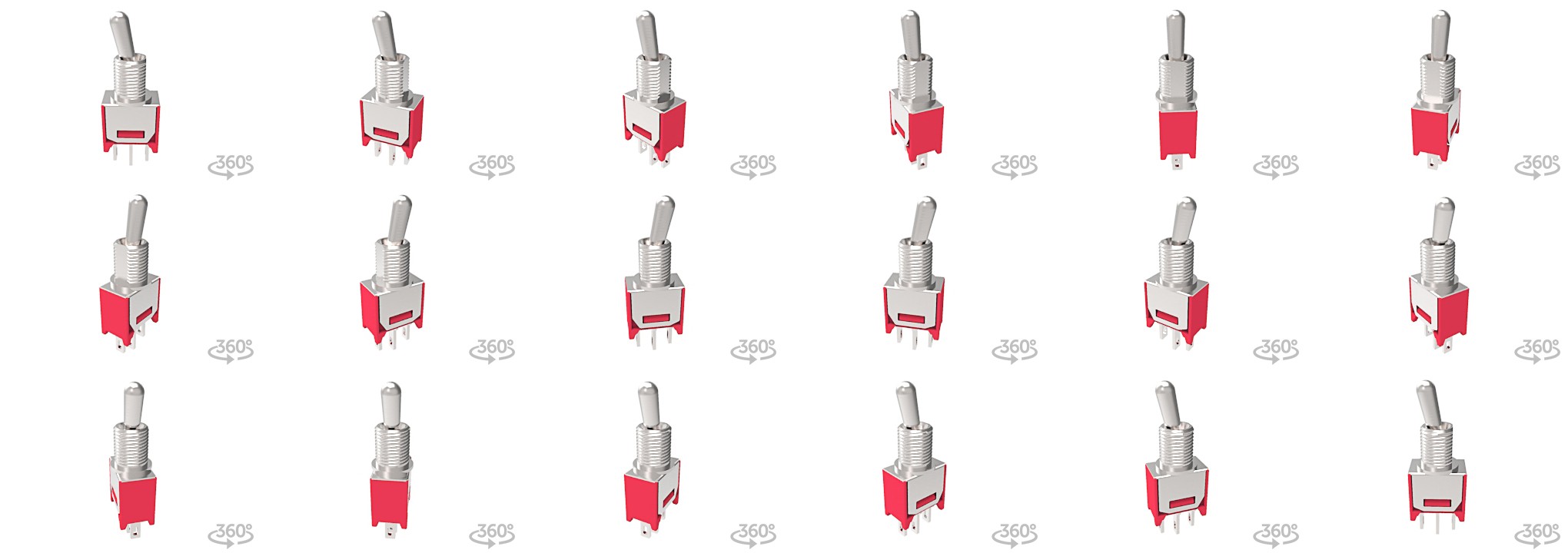

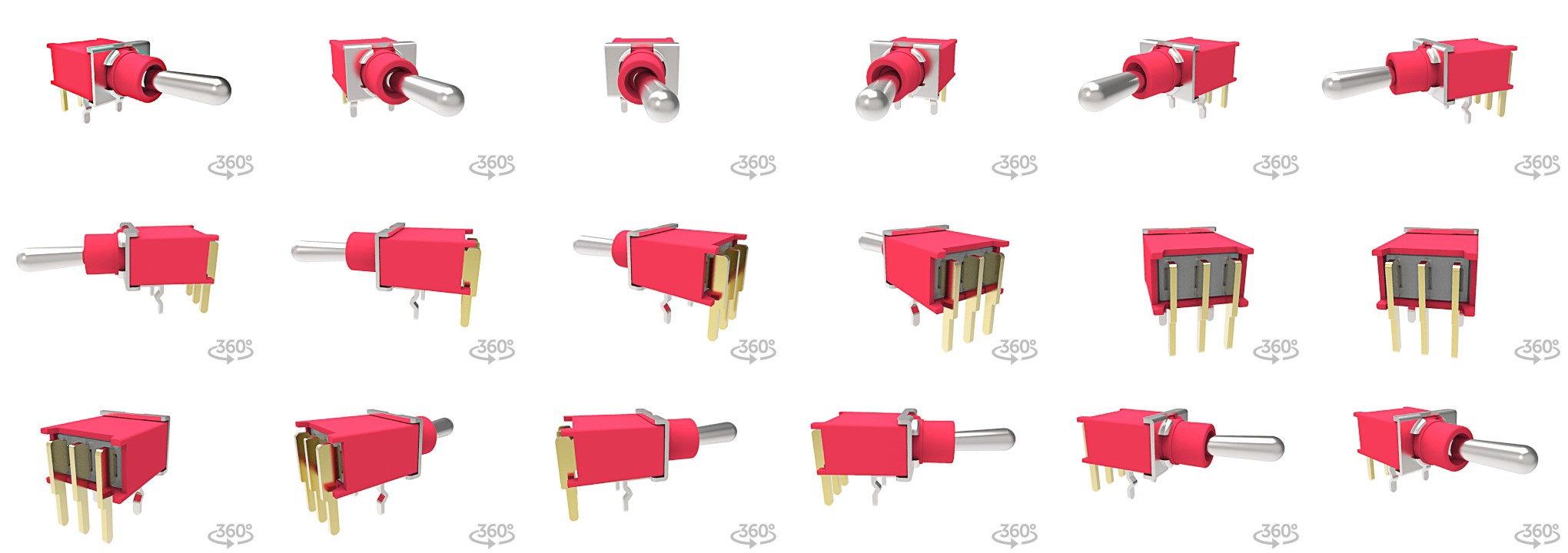

3D Files
